What is Keystone Correction on a Projector?

A must-read when purchasing a projector: Keystone correction
First, let's answer a question: Does keystone affect picture quality?
Yes, keystone correction affects projected image quality. While it is useful for correcting image distortion caused by not placing the projector vertically, it can create artifacts or reduce image clarity, especially when using digital keystone correction, which we will explain in more detail later.
When you buy a projector, in addition to common parameters such as brightness and resolution, you may also see a function called "keystone correction". What is this? What role does it play in a projector? Today we will have an in-depth discussion so that you will no longer be confused when buying a projector.
In actual usage scenarios, the value of keystone correction is particularly prominent. Imagine that in a living room, the projector needs to avoid furniture or decorations and has to be placed sideways on the sofa side table; the projector must be off-center to avoid blocking the line of sight - all these common requirements will cause the projector to be unable to face the screen directly. Keystone correction technology allows users to obtain a standard rectangular screen without sacrificing space layout or viewing comfort, greatly expanding the installation flexibility of the projector.
The Importance of Keystone Correction
Why is keystone correction so important? There are several reasons:
Flexible placement: In fact, different users' projection conditions can accurately place the projector in front of the screen. With keystone correction, it can be projected sideways, downward or upward, and can also project a regular picture, greatly increasing the flexibility of the projector.
Optimal viewing experience: Viewing a distorted image can be uncomfortable and even disruptive to watching a movie or presentation. Keystone correction ensures the image geometry is correct, giving you the best viewing experience.
Adapt to different environments: In conference rooms, classrooms, or irregular home spaces, projectors may need to adapt to a variety of complex projection environments. Keystone correction allows the projector to better adapt to these environments and achieve high-quality projection.
Does keystone affect picture quality?
Yes, keystone correction does have some impact on the quality of the projected image. Although it greatly improves the flexibility of projector placement, this convenience comes at the expense of some image quality.
The key to understanding the impact of keystone correction on image quality is to understand how it works. Most consumer-grade projectors use digital keystone correction, not optical correction (optical correction usually only appears on professional or ultra-high-end projectors, and is expensive).
The principle of digital keystone correction is:

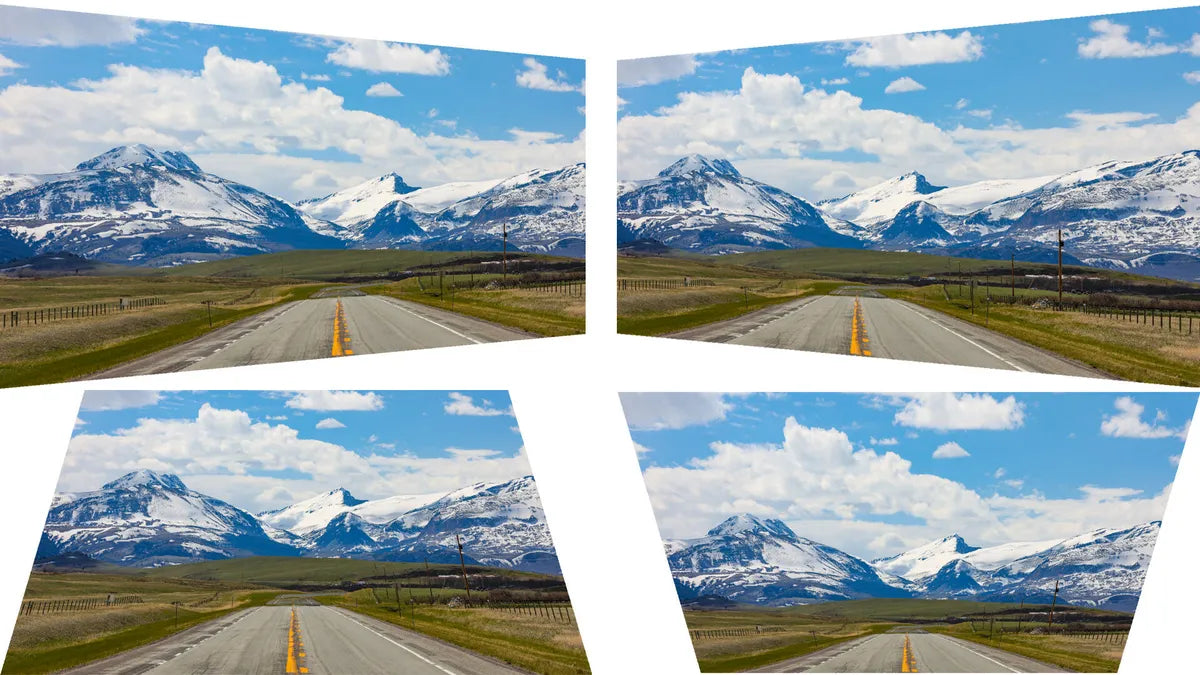

- Pixel remapping: When the projected image is distorted by trapezoidal distortion, the image processing chip inside the projector receives a non-rectangular image signal. In order to "stretch" or "compress" it into a rectangle, the chip needs to resample and calculate the pixels of the image.
- Non-proportional scaling: Imagine a trapezoid whose wide side is longer than the narrow side. During the correction process, the pixels on the wide side need to be "compressed" and the pixels on the narrow side may need to be "stretched" to make it a rectangle of equal width. This non-proportional pixel processing is the main reason for the poor image quality.
The principle of digital keystone correction is:
- Pixel remapping: When the projected image is distorted by trapezoidal distortion, the image processing chip inside the projector receives a non-rectangular image signal. In order to "stretch" or "compress" it into a rectangle, the chip needs to resample and calculate the pixels of the image.
- Non-proportional scaling: Imagine a trapezoid whose wide side is longer than the narrow side. During the correction process, the pixels on the wide side need to be "compressed" and the pixels on the narrow side may need to be "stretched" to make it a rectangle of equal width. This non-proportional pixel processing is the main reason for the poor image quality.
Based on the above principles, keystone correction may cause the following image quality problems:
- Resolution loss is the most important, that is, when the picture is stretched or compressed during adjustment, the original pixels will be modified.
Multiple pixels will be combined into one, resulting in loss of details; if the picture is stretched, it may become "blurred". - Blurred or jagged edges of the picture. Because the pixels are stretched or compressed, it is particularly obvious at the edges of the picture, and there may be a sliding blur or jagged phenomenon.
- Uneven brightness. When correcting, the pixels in different areas change, and the uneven distribution of picture brightness (pixels are compressed or stretched) will affect the viewing experience to a certain extent.
Does projector keystone reduce resolution?
If conditions permit, try to place the projector in front of the screen and make sure the lens is perpendicular to the screen. This way the projected image is a square rectangle and almost no keystone correction is required, thus completely avoiding image quality loss caused by correction.
- Vertical direction: If the projector is placed on a table, try to use a bracket or a pad to make the center of the lens close to the center of the screen. If it is ceiling mounted, also make sure the projection angle is vertically downward.
- Horizontal direction: Make sure the projector is located in the center of the left and right sides of the screen.
How to do image compensation when projecting sideways?
Many current projectors can achieve smooth and non-stuttering images through motion compensation even in side projection mode.
Because side projection has a certain impact on the image, motion compensation can effectively reduce image smear and jitter, making high-speed motion scenes (such as sports games, action movies, and games) look smoother and clearer, greatly improving the viewing experience.
In Conclusion
In short, keystone correction is not a useless function of the projector. It largely determines the regularity of your projected image and your viewing experience. Understanding and choosing the keystone correction function that suits your needs can allow you to enjoy large-screen projection while saving a lot of trouble in placement.
